Radar Object Detection System (RODS-L)

The Radar Object Detection System RODS-L is a high precision compact radar sensor designed to enhance vehicle safety by providing timely visual and audible alerts that help drivers avoid collisions. It operates on 24 GHz FMCW radar technology and performs reliably in extreme temperatures and all weather conditions. With intelligent three zone detection that identifies danger areas caution areas and safe areas, the system ensures superior hazard awareness even in demanding environments.

Radar Object Detection System RODS-L | Video

Watch this video to understand how the RODS-L radar system detects moving and stationary objects to enhance safety in industrial traffic zones.

Radar Object Detection System (RODS-L) video thumbnail

Technical Specifications

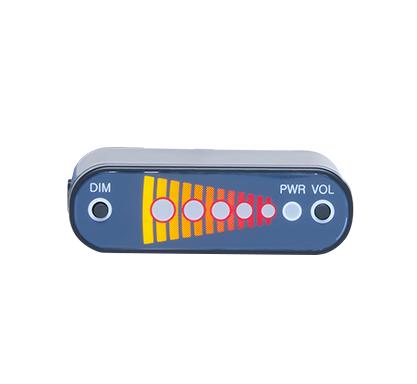

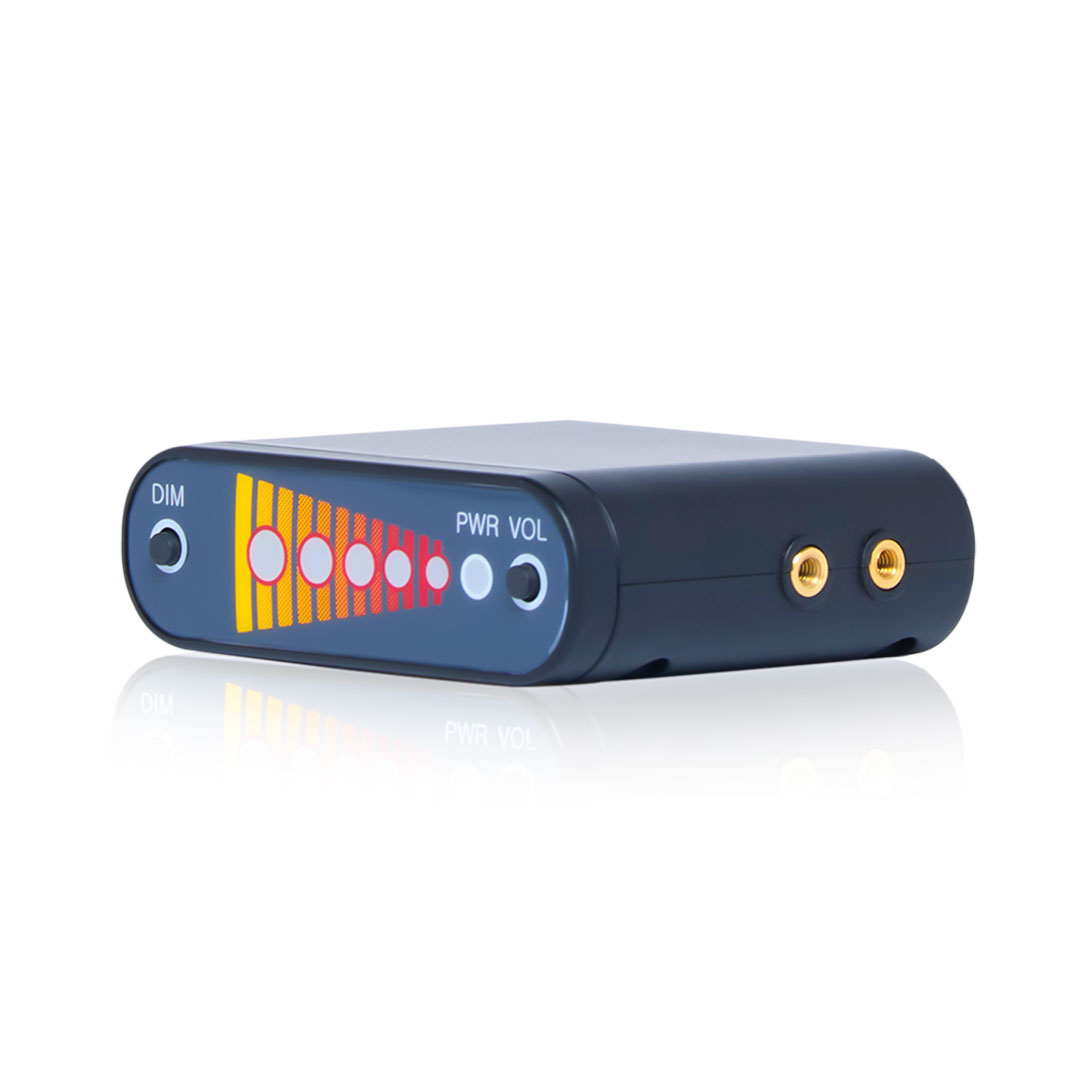

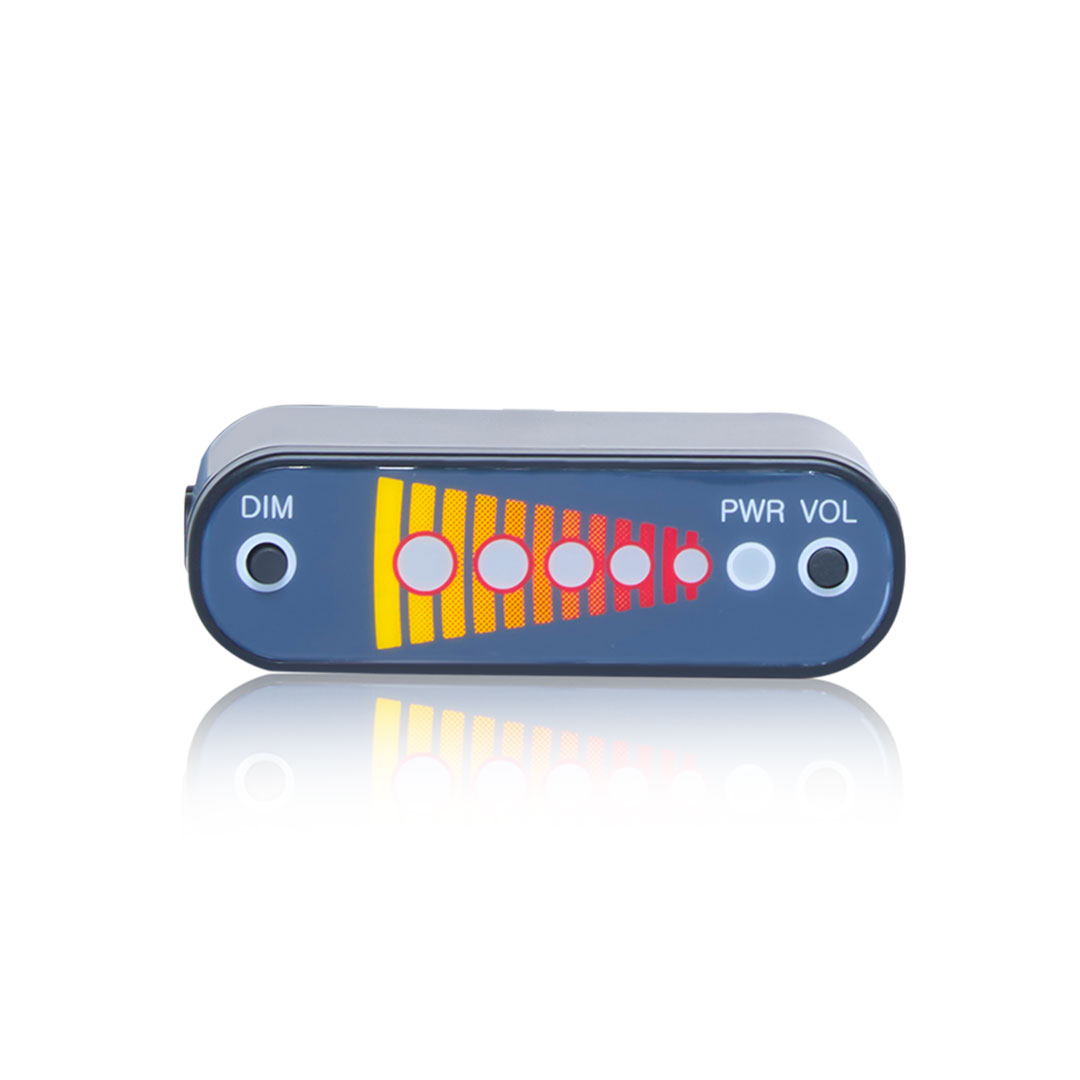

Display Unit

Detection Zone

3 Zones

Operating Temp.

-30°C ~ +70°C

Cable Length

0.7 M

Other Features

Connector

4P Screw Lock type

Housing Material

Polycarbonate

Dimension

20(H) x 65(L) x 54(D) mm

Weight

220g with Bracket

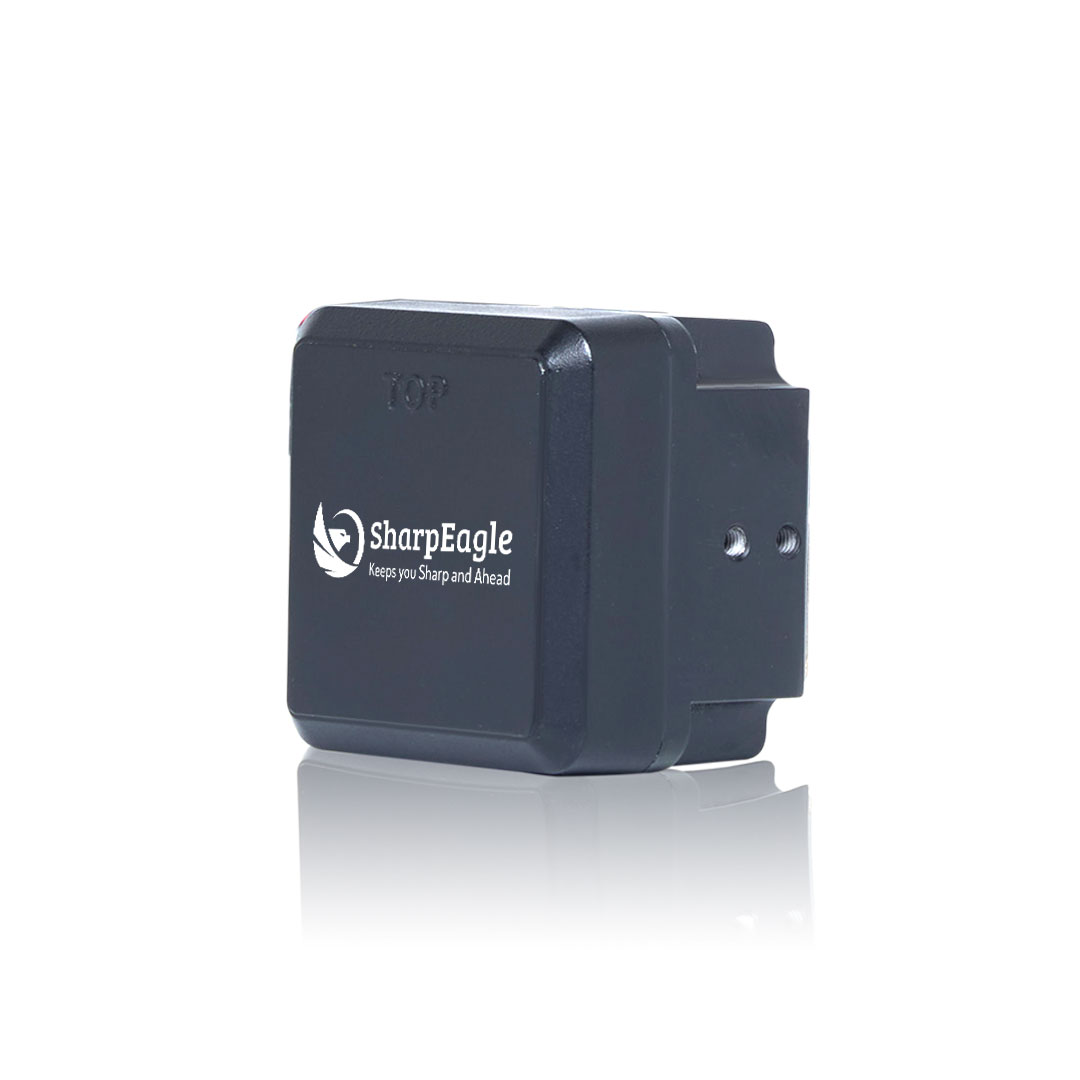

Sensor Spec

Transmit frequency

24.05 ~ 24.25 GHz

Modulation

FMCW (Frequency Modulated Continuous Wave)

Supply voltage

12 ~ 24V DC

Current consumption

300 mA@12V

Power on time

300ms

Detection time

200ms

Operating temperature

-40°C~ 85°C

IP protection rate

69K

Dimension

43.6(W) x 43.6(H) x 33.1(D) mm

Weight

175 g (W/O Bracket) 240 g (With Bracket)

Communication

CAN-Bus

Key benefits of Radar Object Detection System

Smarter Detection For Safer Movement

Safety With Zero Compromises
 Programmable Radar Sensor icon

Programmable Radar Sensor

Allows precise configuration for accurate object detection.

Compact 24 GHz Radar Sensor

Small in size yet powerful enough to deliver reliable performance.

FMCW Radar Modulation

Ensures stable and high precision detection in varying environments.

Waterproof and Rugged Design icon

Waterproof and Rugged Design

Built to operate dependably in harsh and demanding conditions.

Related products

What our Clients say

Trusted By Leading Industries For Safety, Clarity, And Dependability

Since we started using the Forklift Radar Blind Spot Detection System, our warehouse is much safer. The system alerts our drivers to hidden objects and people in blind spots, preventing accidents. It’s easy to set up and use, and we’ve seen a noticeable drop in safety incidents.

Kuwait Drilling Co. K.S.C.C.

The Forklift Blind Spot Detection System has greatly improved safety in our factory. The system helps our forklift drivers spot obstacles and avoid accidents in tight spaces. It’s reliable, easy to install, and has made a big difference in preventing accidents.

Solatherm Gulf FZE

The Forklift Blind Spot Detection System has improved our distribution center’s safety significantly. Drivers can now easily avoid obstacles and prevent collisions in high-traffic areas. The system is user-friendly, and we’ve seen fewer accidents and smoother operations since we started using it.

Camden Boss Ltd

Thanks to the Forklift Radar Blind Spot Detection System, our logistics team feels much safer. The system helps detect hazards around forklifts, preventing accidents. It’s easy to install and use, and we’ve had fewer close calls since implementing it.

TP Electrical Supplies & Fixings LTD

Contact us to optimize your industrial safety today!

Fancy Arrow

Let’s build a safer worksite together

Get Your Custom Safety Solutions

Trusted by Industry Leaders

Atmata Logo
Gulf metal logo
AI Manhal logo
Site Master Trading logo
tp electrical logo
Abdul Latif Jameel logo
Powerbar logo
ISUZU logo
KDC logo
Aerocom metals Ltd logo
Aerocom metals Ltd logo
KDC logo
ISUZU logo
Powerbar logo
Abdul Latif Jameel logo
tp electrical logo
Site Master Trading logo
AI Manhal logo
Gulf metal logo
Atmata Logo
Coral logo
Stack Group logo
international business devolopment llc
CMS
logo
INTERNATIONAL ENERGY SERVICES LIMITED
Shaleen petroleum
Grey Wolf
Grey Wolf
Shaleen petroleum
INTERNATIONAL ENERGY SERVICES LIMITED
logo
CMS
international business devolopment llc
Stack Group logo
Coral logo

FAQs—Radar Object Detection System (RODS-L)

Find Quick Answers To Common Product Questions

What is the detection range of RODS-L?

The RODS-L system offers a programmable detection range of up to 3.0 meters wide and 5.5 meters long, divided into three safety zones: danger, caution, and safe for enhanced awareness.

Yes, it performs reliably in harsh conditions, operating smoothly in extreme temperatures from -40°C to +85°C, with IP69K protection ensuring complete resistance to water, dust, and high-pressure cleaning.

The Forklift Blind Spot Detection System by SharpEagle uses radar sensors to detect objects and people up to 9 meters away. It sends real-time alerts with a buzzer and lights to warn the driver. The system is waterproof and dustproof, making it reliable in tough conditions. It can also be customized for different work environments.

Alerts are given through clear visual indicators and loud audible signals, letting drivers know the exact position of detected objects within the danger, caution, or safe zones in real time.

Yes, RODS-L features a rugged, waterproof design with an IP69K rating, making it resistant to water jets, dirt, and extreme environmental conditions typically found in industrial and outdoor operations.

It’s perfect for forklifts, industrial trucks, construction machinery, and heavy-duty vehicles operating in confined, high-traffic, or hazardous areas where collision risks and blind spots are common challenges.

Yes, the system supports API and SDK integration, making it compatible with existing IoT platforms, security infrastructure, and automation systems used in industrial or commercial fleet operations.

Absolutely! It’s built for ADAS and autonomous systems, offering real-time object detection and tracking that enhances navigation, reduces collision risk, and supports self-driving vehicle operations in dynamic environments.
